The KDU series products are direct drive motors.
♦ Super High resolution : A super high resolution of 8,388,608 pulses per revolution!
♦ High positioning accuracy : High-precision absolute positioning accuracy of 10s (with position correction control) and high-accuracy repeatability of ±0.5s.
![](images/product11.jpg) |
Used for
• Semiconductor manufacturing systems
• FPD manufacturing systems
• Optical machines
• Measurement analytical and test systems |
![](images/sab_title2.gif)
![](images/kducode.gif)
Motor type: Direct drive motor KDU series
• KUD-13-S: KDU-13SA-E08-100
• KDU-13-W: KDU-13WA-E08-100
System: Combination with AC servo driver HA-730-5-100
Specification symbol
• No mark: Standard item
• SP: Special specification
![](images/sab_title3.gif)
![](images/11-24-2012 2-44-32 PMcc.jpg)

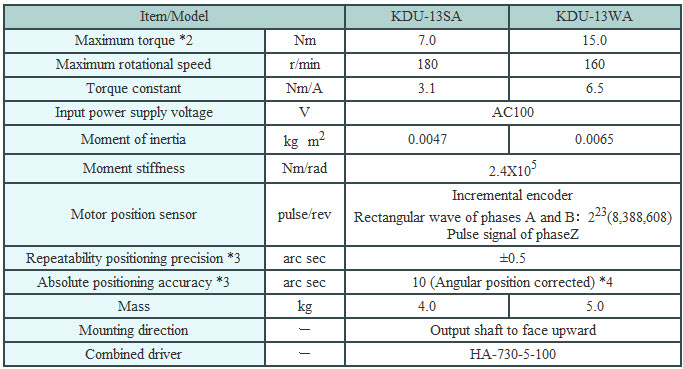

Note1: * The table above shows output values of output shaft.
Note2: * The values in the table above are obtained when connected to HA-730 servo driver.
Note3: * The repeatability positioning precision and Absolute positioning accuracy repeatability are the values measured in an environment of 23 ±0.3°C in temperature, 50% RH in humidity and with output shaft facing upward in mounting direction.
Note4: * Value after angular position of the HA-730 servo driver is corrected.
![](images/sab_title4.gif)

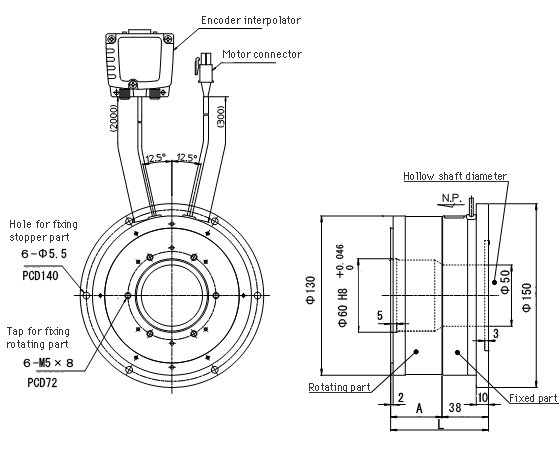

![](images/drawingnn.gif)

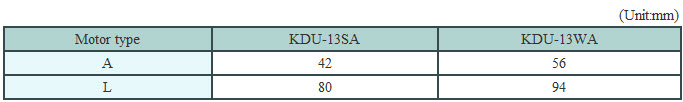

![](images/11-24-2012 2-46-57 PMdd.jpg)
|
